● Infinitive Optical System Providing Excellent Optical Functions.
● With the stable stand structure, advanced stage design, and comfortable operation,
● It is widely used in institutes and laboratories to observe and identify the structure of various metals and alloy.

Specification:
● Viewing Head: Trinocular Head Inclined at 30°, Interpupillary Distance 48-75mm
● Eyepiece: Extra Wide Field Eyepiece EW10X/22mm

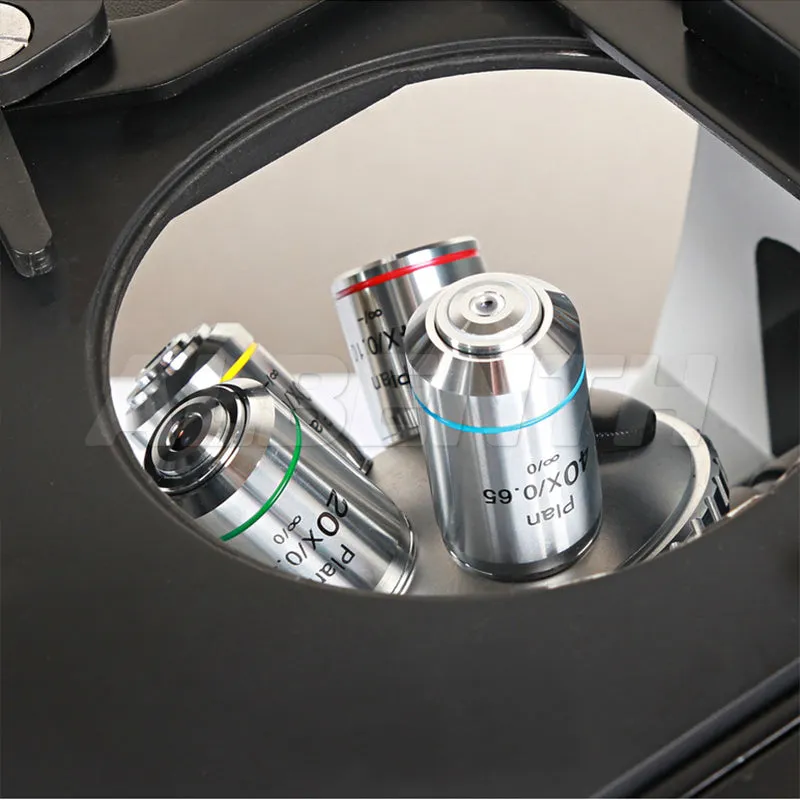

● Infinite Plan Achromatic Objective:
- PH10X/0.25, WD= 10 mm
- PH20X/0.4, WD= 5.1mm
- PH40X/0.6, WD= 2.1mm

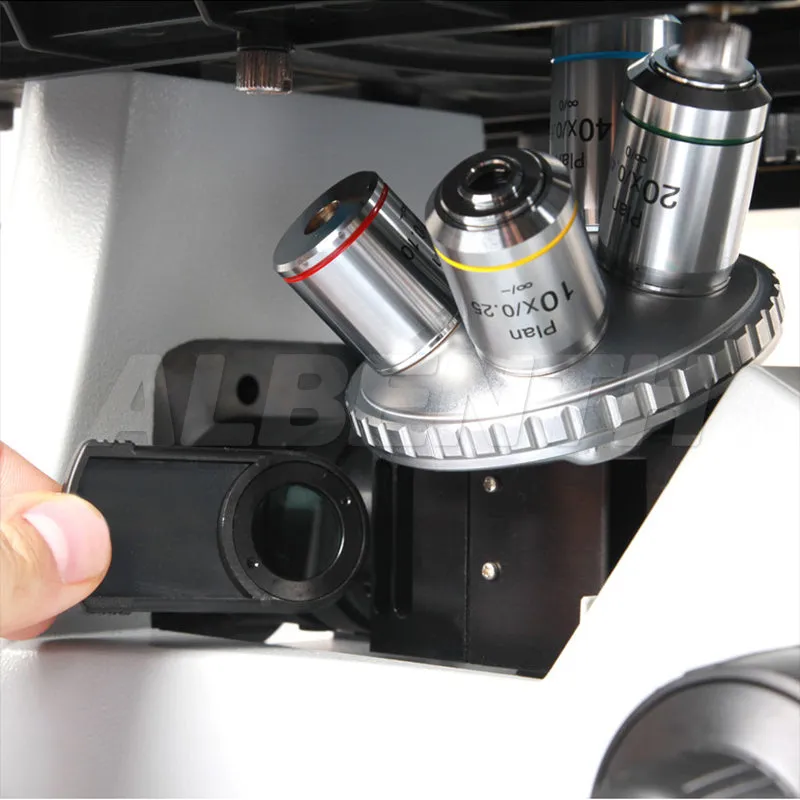

● Nosepiece: Quintuple Nosepiece
● Condenser: ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)
● Phase Annulus: 10X-20X, 40X Phase Annulus Plate (Fixed)
● Stage:
- Plain Stage 160X250mm
- Glass Insert
- Auxiliary Stage 70X180mm
● Focusing: Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm
● Illumination: Halogen Lamp 6V/30W
● Filter: Blue, Green and Ground Glass, Diameter 45mm

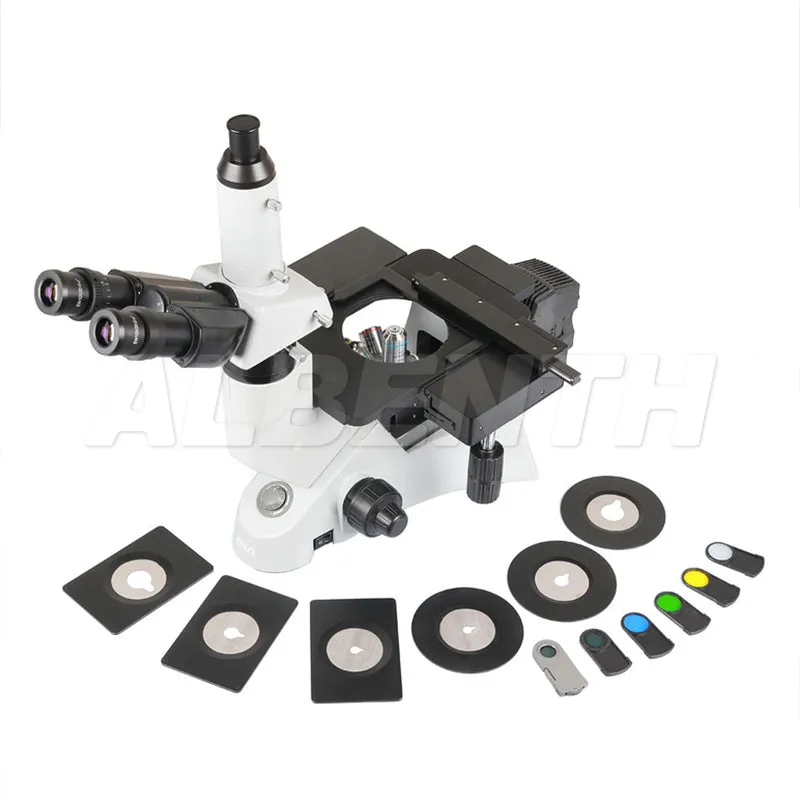

Packing List :
1x Trinocular Siedentopf Compound Microscope Head
1x Microscope Body with Frame, Kohler Illumination System and Base
1x Pairs of Widefield Eyepieces: EW10X/ 20mm
1x Infinite Plan Achromatic Objective: 10X 20X 40X
1x Blue, Yellow, Green, and Ground Glass Filter

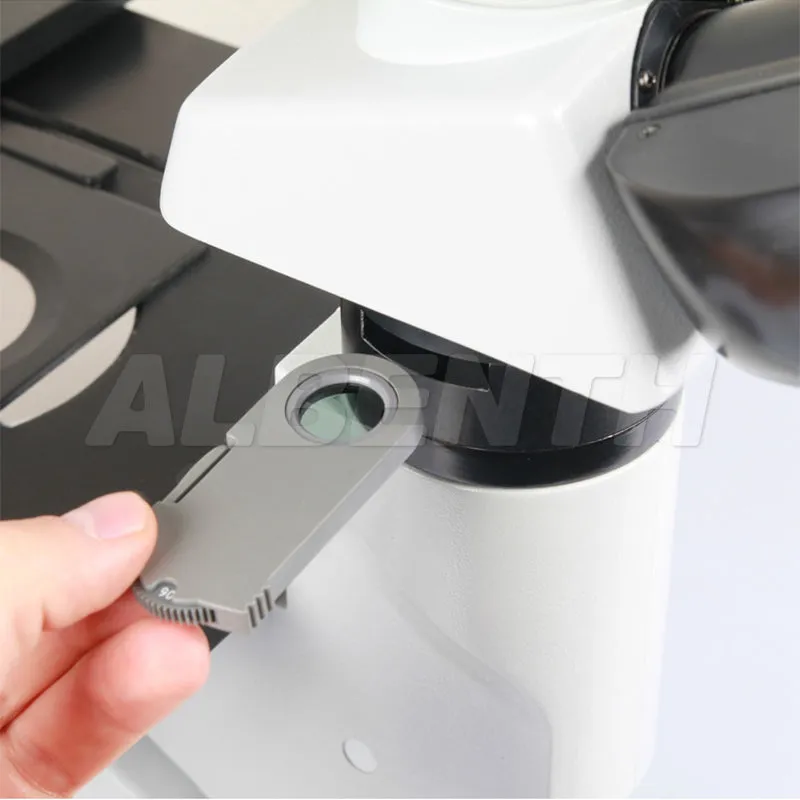

1x Polarizer, analyzer
1x Power Cord
1x Dust Cover
1x User's Manua
