Item Description
The IR-30 source is a thermal emitter with emissivity ~0.8. It is appropriate for use in lab or field instrumentation due to its long life and stable properties. The 4.2 Watt coiled resistance wire filament operates at 950C.

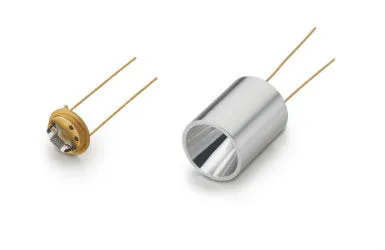

The IR-30 is mounted on a TO-5 header. Optional aluminum reflectors are also available, parabolic for collimated output and elliptical to focus the output (when ordering select IR-12K and optional reflector).
Also see the Universal Photon Source as an accessory to your emitter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Long service life | |
| Temperature (C) | 950 |
| Volts (V) | 2.75 |
| Current (A) | 1.5 |
| Power (W) | 4.2 |
