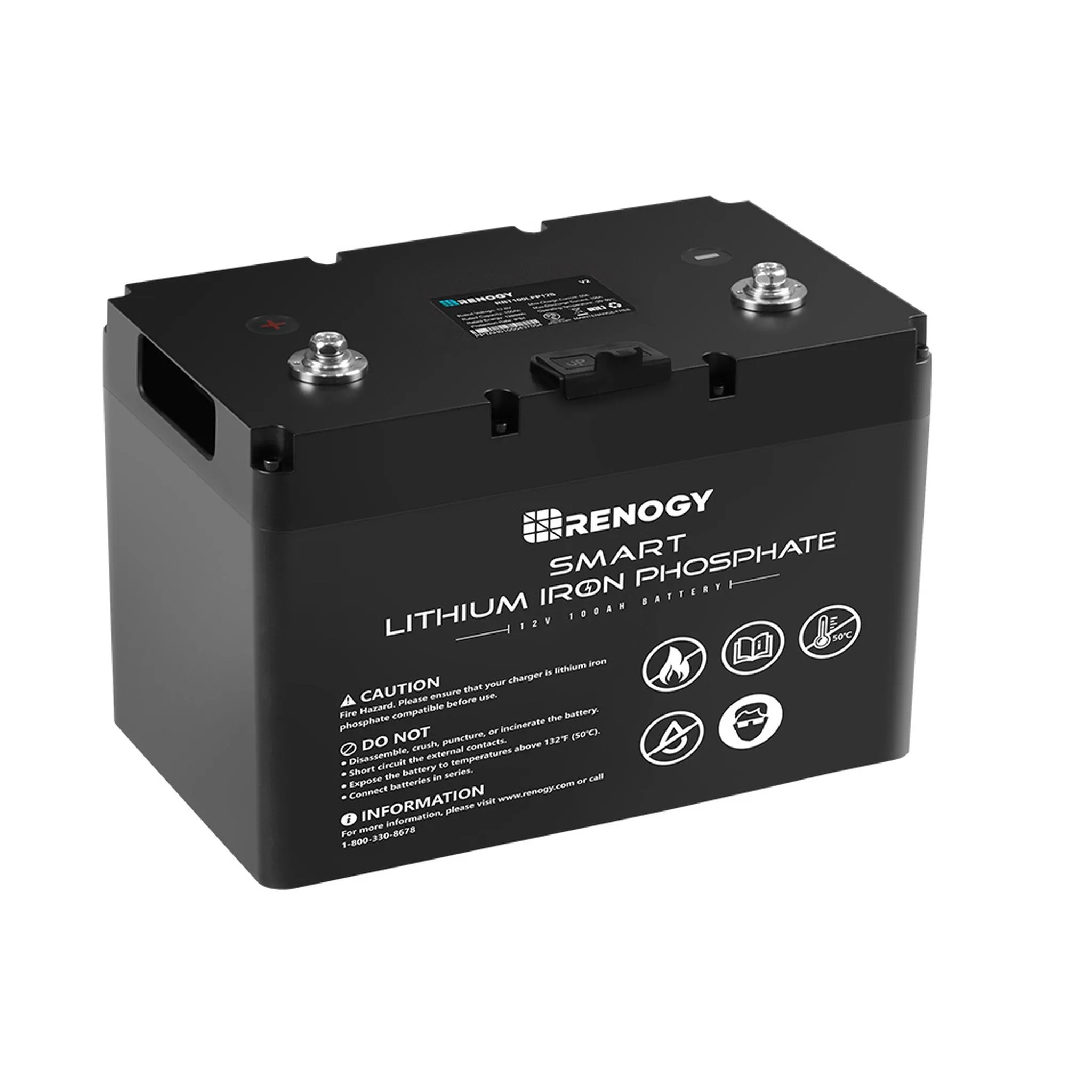

Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery enables auto-balance among parallel connections and provides more flexibility for battery connection. The integrated smart battery management system (BMS) not only protects the 12V 100Ah LiFePO4 battery from various abnormalities but also monitors and manages the charging/discharging process. The state-of-the-art battery cells ensure a long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, cabin, or marine use, this lightweight, auto-balanced, ultra-safe, long-cycle-life lithium-ion battery is the perfect plug-and-play solution for you!

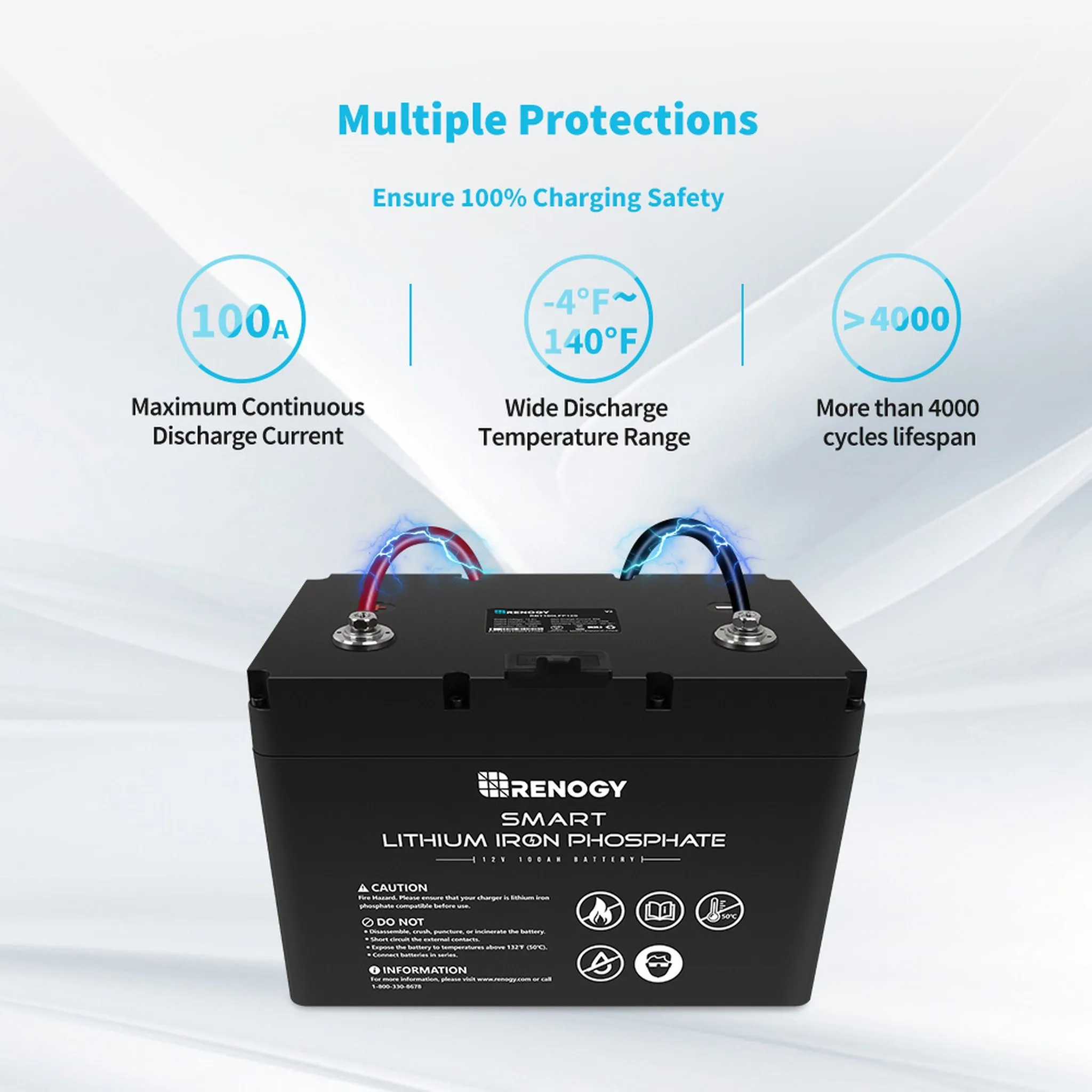

Uncompromising Quality: State-of-the-art battery cells ensure a lifespan of more than 4000 cycles, 100A continuous discharge current, and a wide operating temperature range.

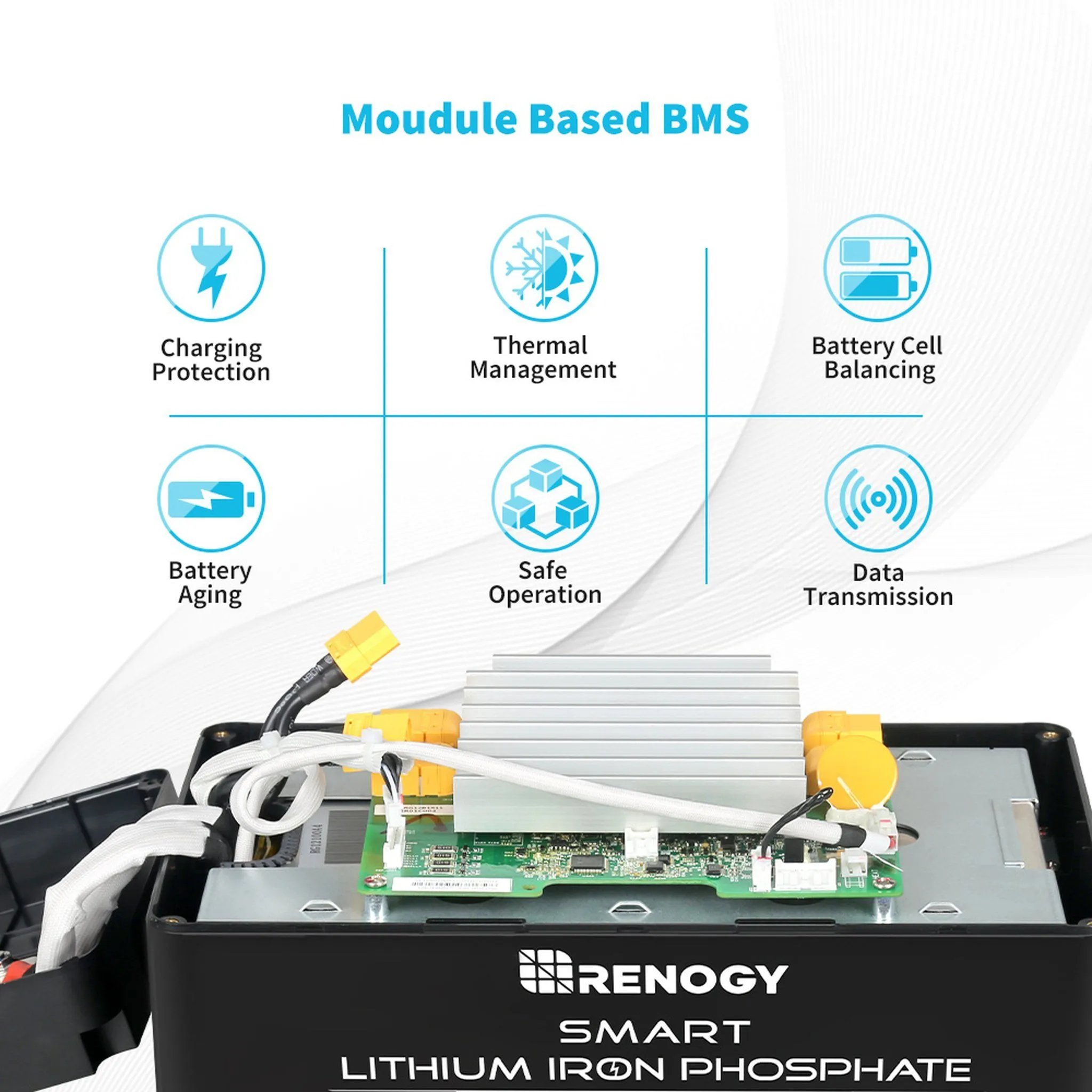

Reliable BMS System: The state-of-the-art battery management system (BMS) with high-performance dual-processors provides short circuit, over charging and over-temperature protection while maintaining a balanced voltage across all cells.

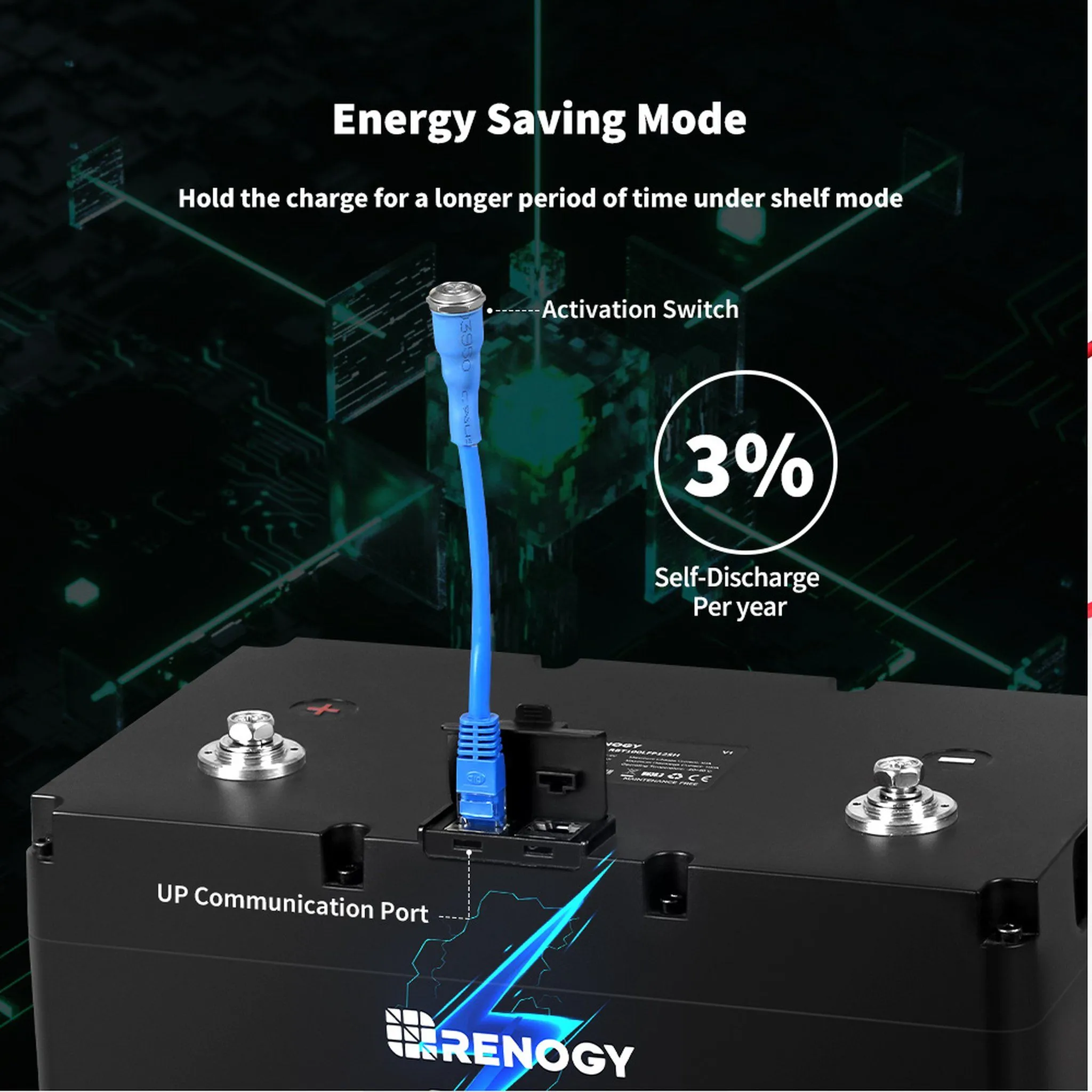

Activation Switch: The activation switch will allow you to manually access shelf mode. This is where the battery will have a very low self-discharge rate and can hold charge for longer, protecting your battery when not in use.

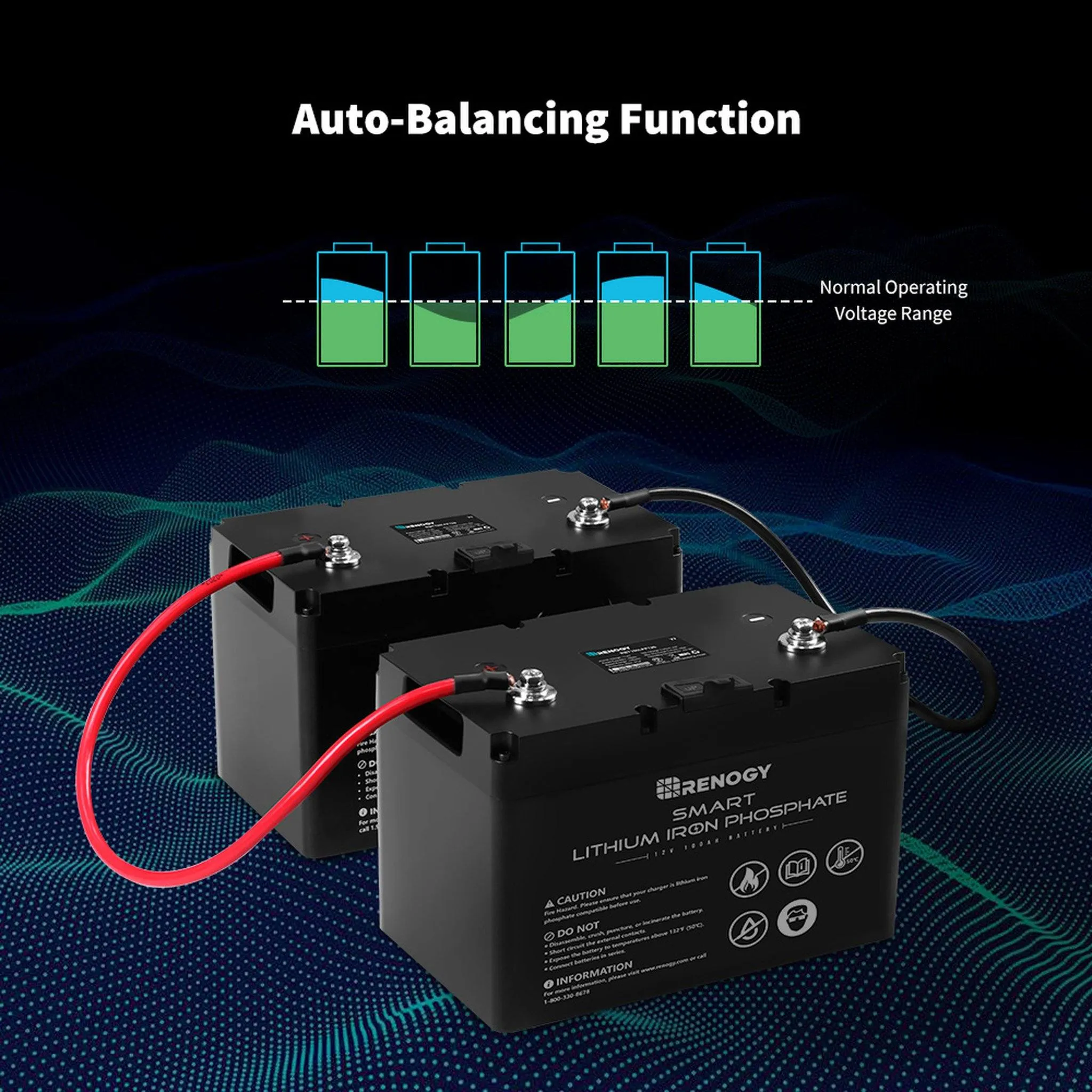

Auto-Balancing Function: Easily connect multiple batteries in parallel with the auto-balancing function, improving the average charging efficiency for your batteries in the long term.

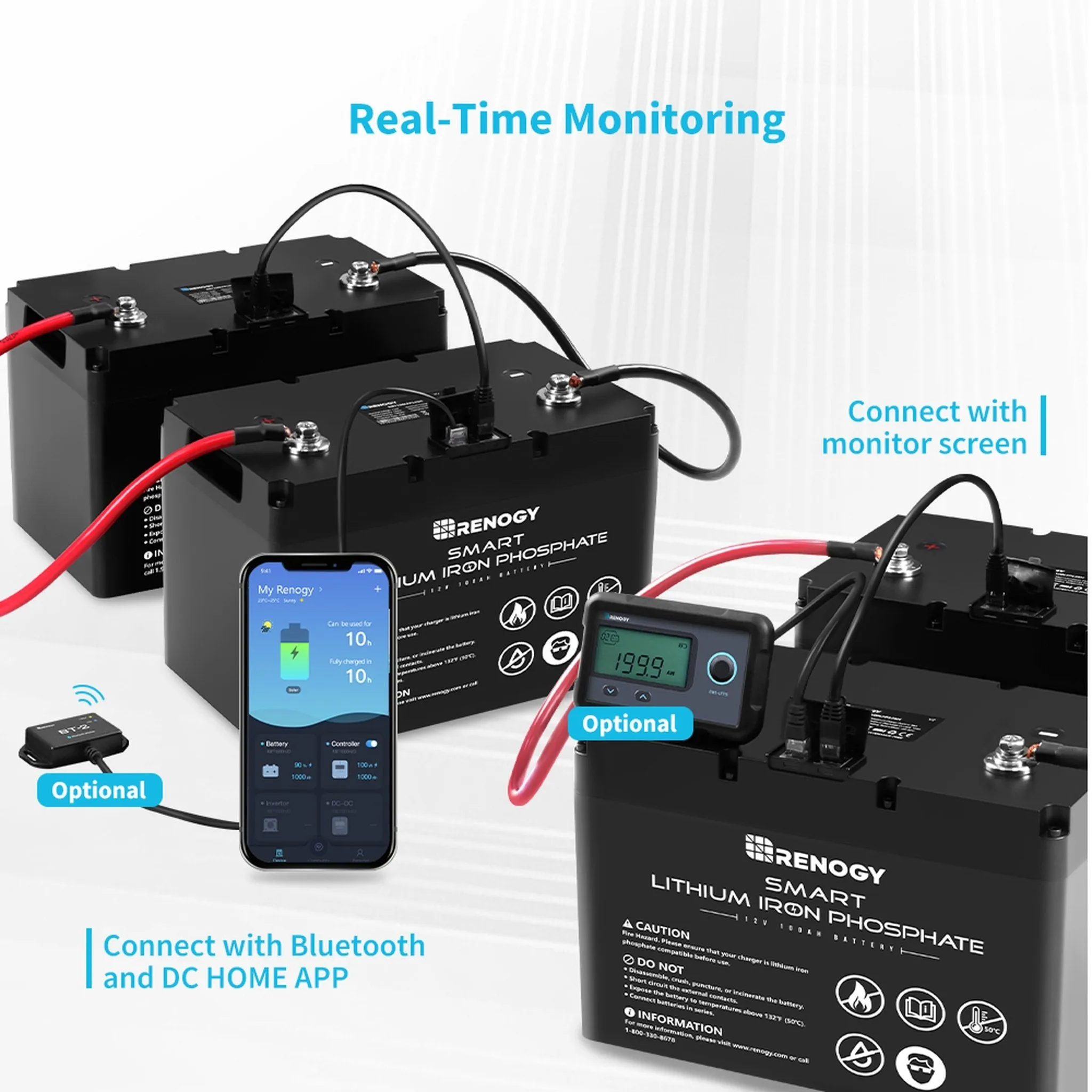

Real-Time Monitor: The battery features a RS485 communication port—enabling communication between batteries, external devices (BT-2 Bluetooth Module or Monitoring Screen) and host computers for you to monitor the charging status in real-time on the Renogy DC Home APP.

• The normal operation of the self-heating function requires a stable charge current greater than 3A.
• Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
• DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
• Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.





Battery Type: Lithium Iron Phosphate

Rated Capacity: 100AH

Nominal Voltage: 12.8V

Voltage Range: 10-14.8V

Energy: 1280WH

Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles

Connection Method: Parallel

Automatically Self-heating Function: No

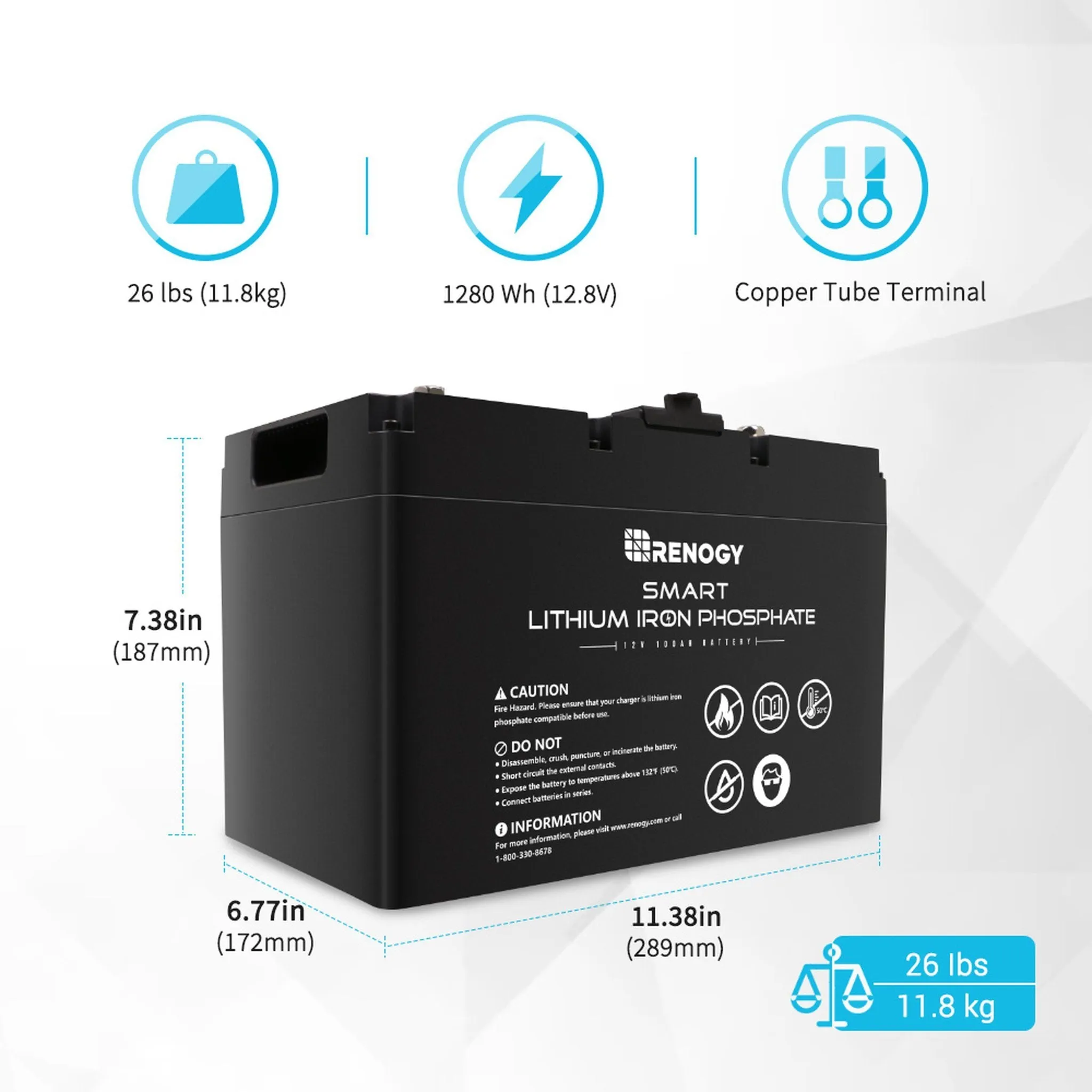

Dimensions: 11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm

Weight: 26 lbs. / 11.8 kg

Protection Rate: IP54

Housing Material: PC ABS

Charge Voltage: 14.4V

Maximum Continuous Charging Current: 50 A

Charge Cut-off Voltage: 14.4V

Maximum Continuous Discharging Current: 100 A

Discharge Cut-off Voltage: 10V

Standard Operation Temperature: 25℃±5℃

Storage Temperature: -13~149℉ / -25~65℃

Charge Temperature: 32~131°F/ 0~55°C

Discharge Temperature: -4~140°F/ -20~60°C

Built-in Bluetooth: No

Communication Port: RJ45 (Modbus Protocol)

Bolts: M8 x2

Activation switch: x1

Material and workmanship warranty: 5-year

opc:

Certifications: UN38.3, MSDS, CE, FCC, PSE, UL (Battery Cell), TUV (Battery Cell)
