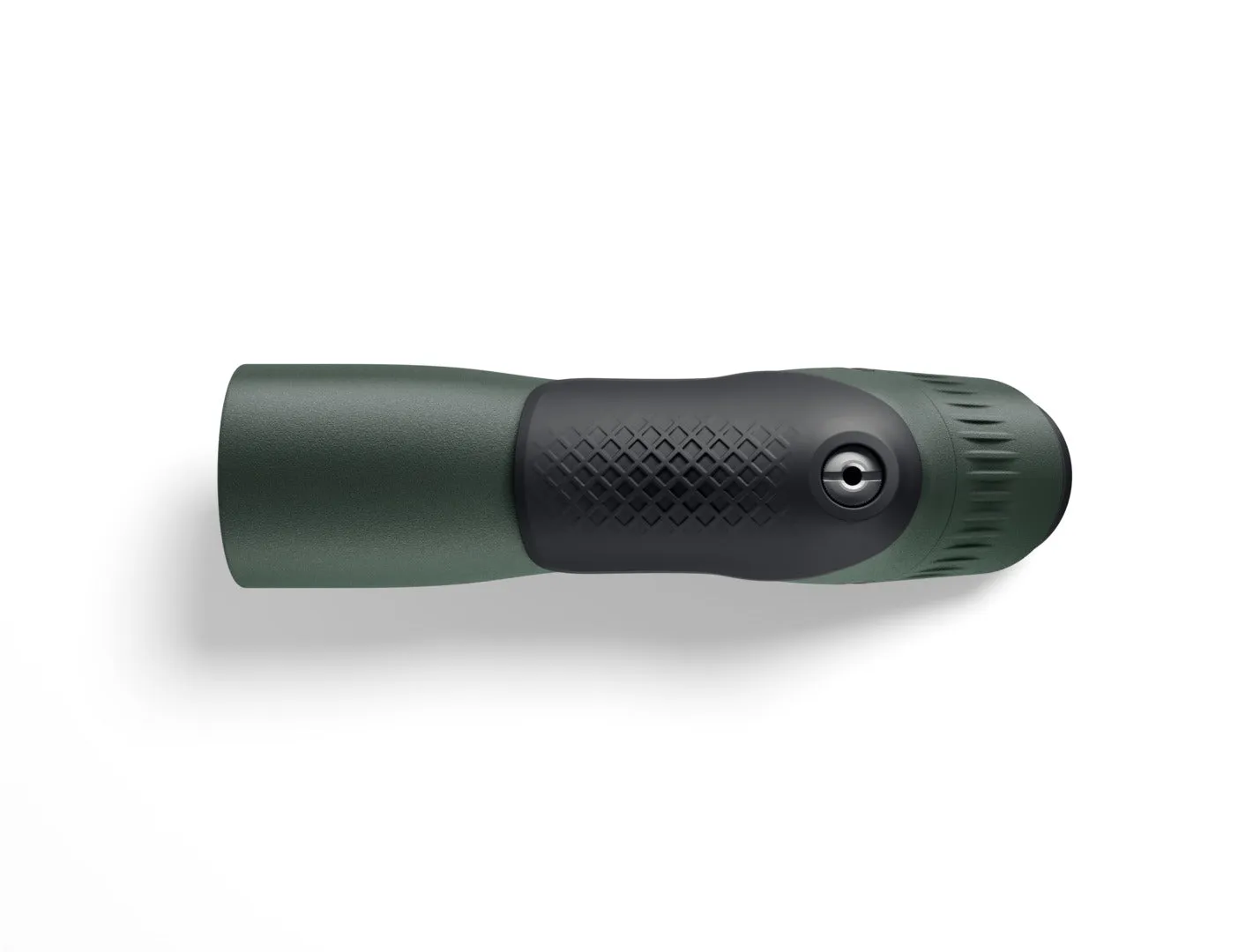

The Swarovski ATC spotting scope is brand new spotting scope with ideal companion for activities where pack size and weight play a decisive role. With its compact dimensions, the spotting scope is smaller than a standard sheet of paper and will fit easily in any backpack or carry-on bag. The ATC spotting scope only weighs just slightly over 2 pounds and won’t slow you down on long hunts or adventures.
A removable half shell is attached to the bottom of the spot-ting scope using the tripod thread, which allows it to rest in your hand or on a firm surface without blocking the focusing wheel. This allows comfortable, stable observation even without a tripod. The carrying strap supplied can be fitted directly to the spotting scope and provides fast access.

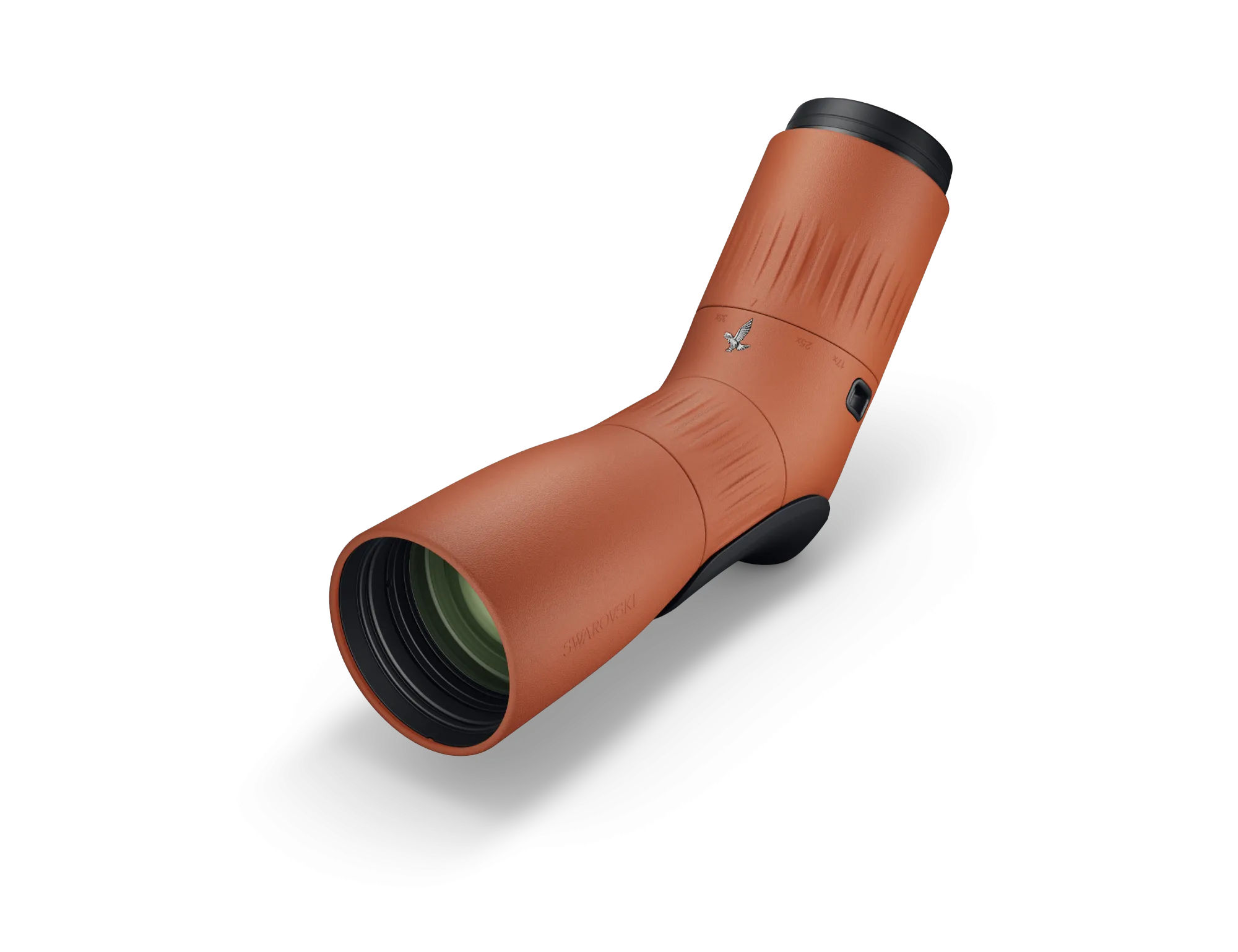

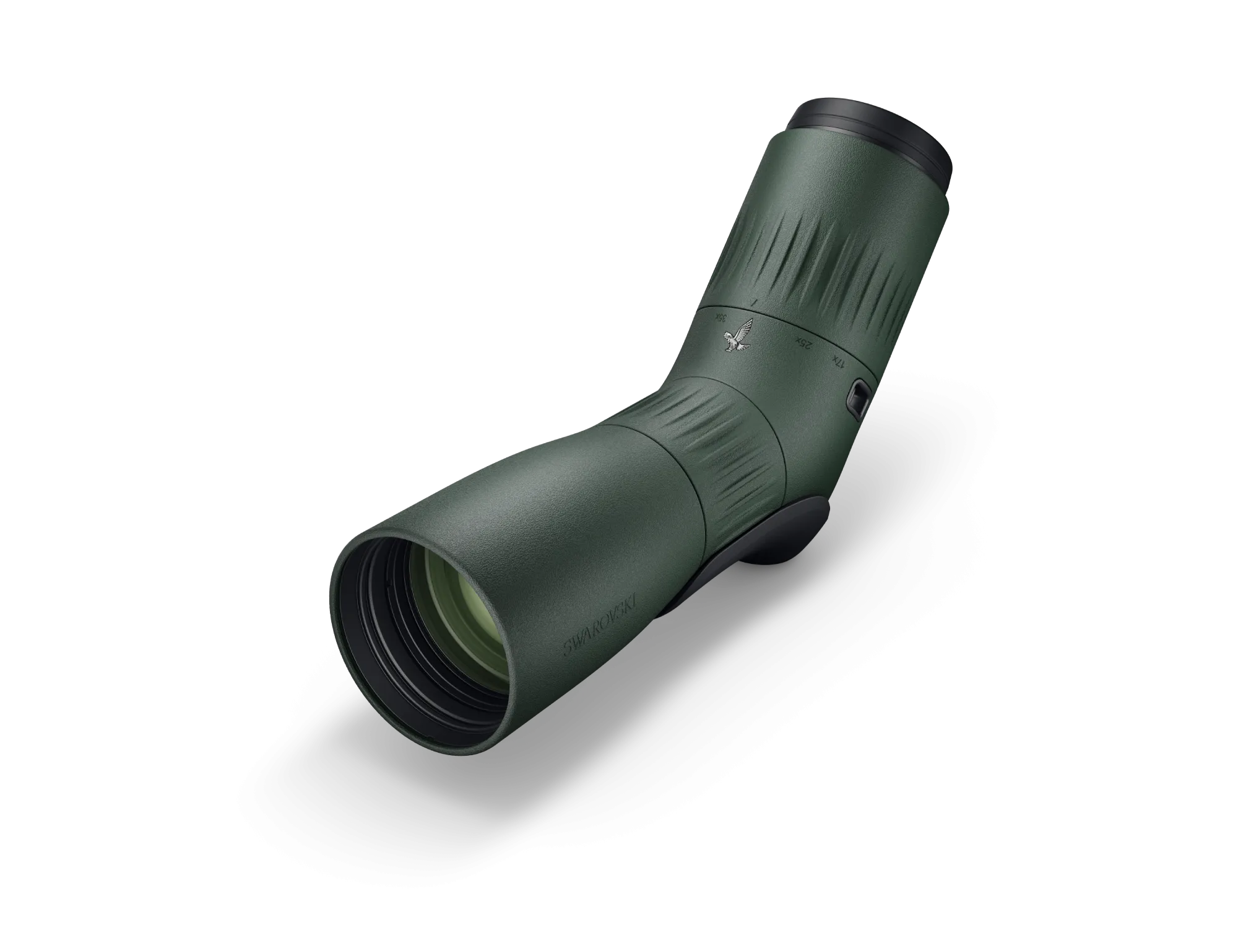

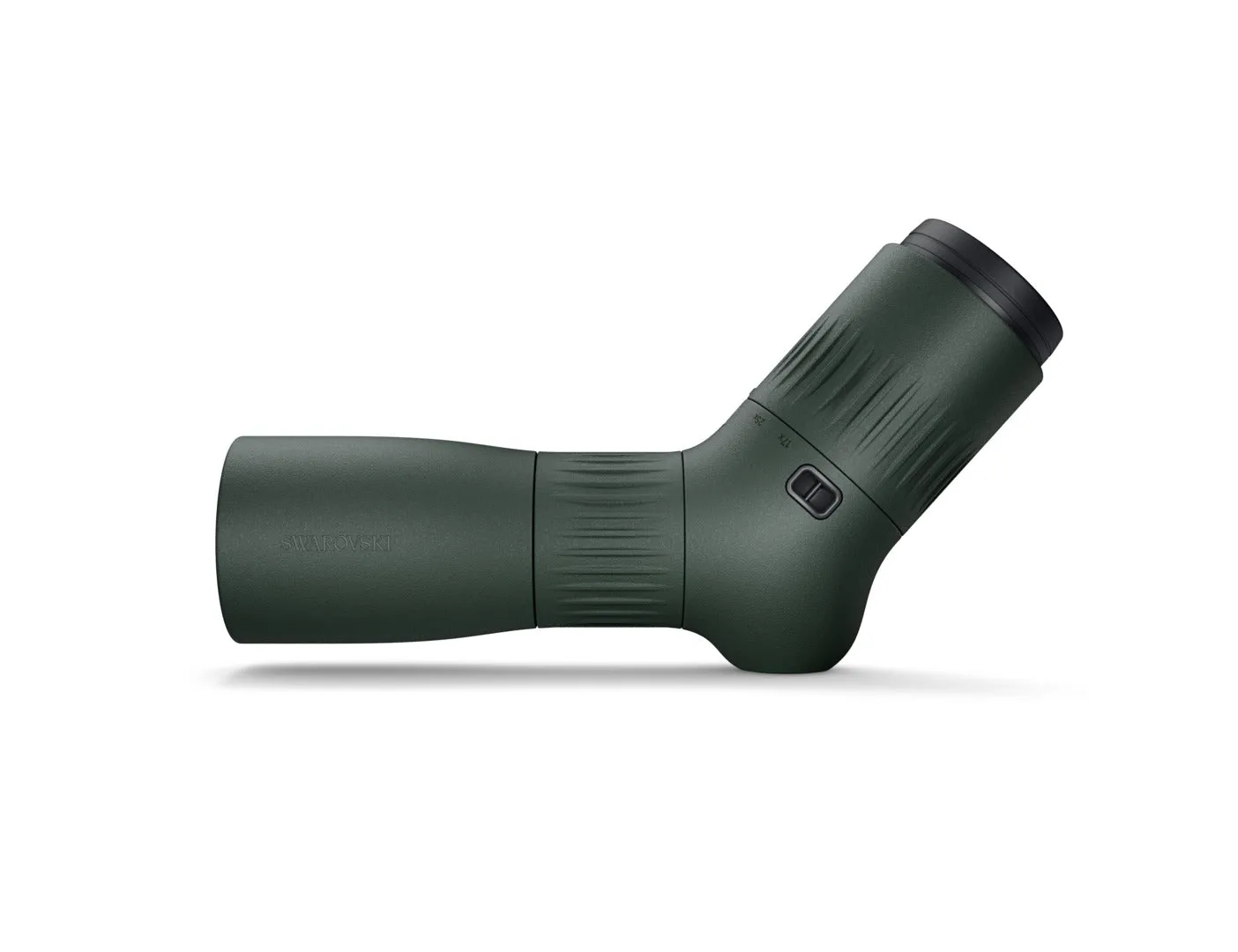

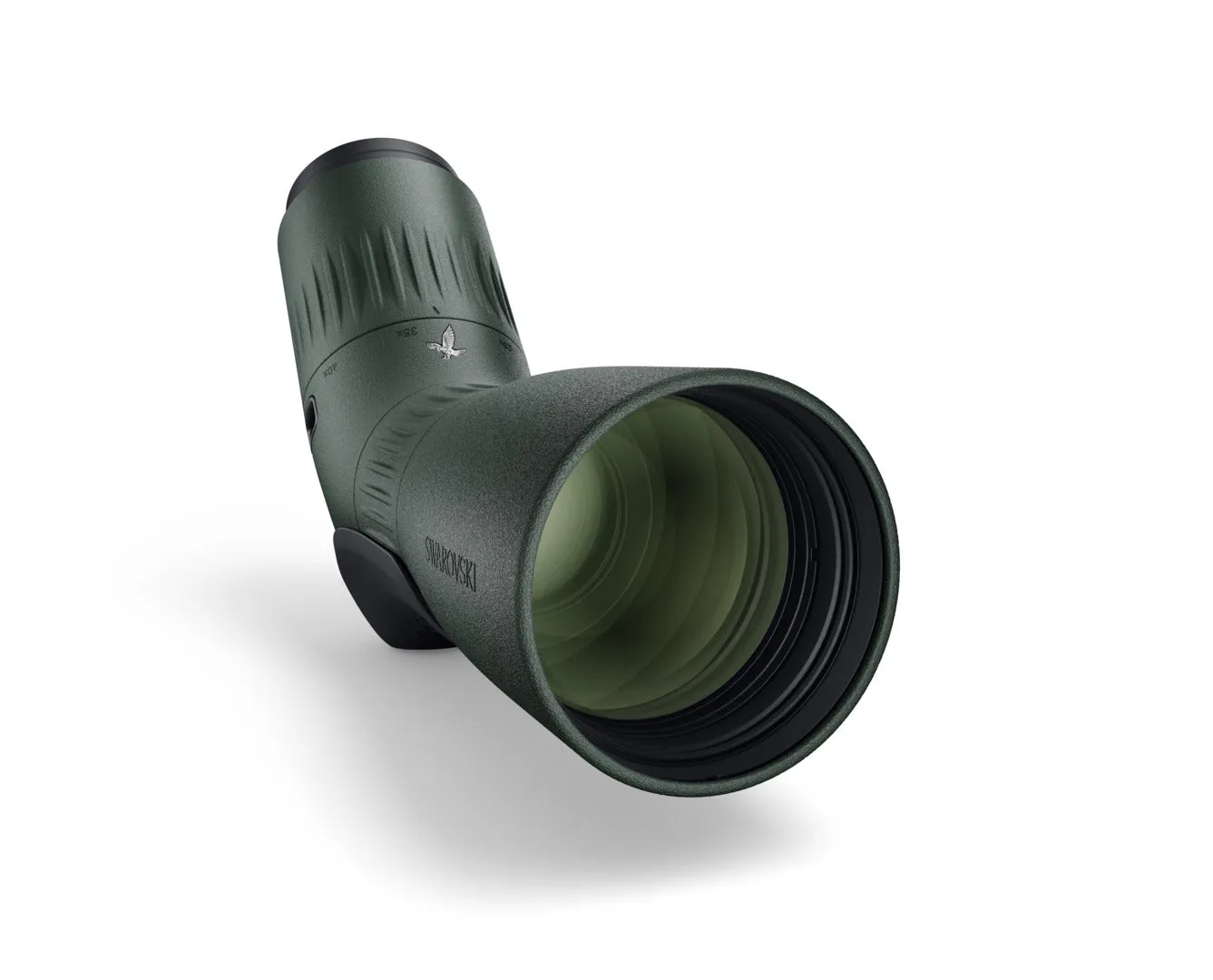

The ATC spotting scope is available with angled view (ATC) in green and burnt orange, and with straight view (STC) in green. The ATC/STC is constructed as a single unit and cannot be separated into eyepiece and objective modules.
SUPPLIED WITH:
- Half shell
- Objective lens cover
- Eyepiece cover
- Carrying strap
- Thread adapter (from 3/8“ to 1/4“)
- Microfiber cleaning cloth
TECHNICAL INFORMATION:
Magnification:17- 40x
Effective objective lens diameter (mm):56
Exit pupil diameter (mm):3.4 -1.4
Eye Relief (mm):20
Field of view (m/1,000 m/ft/1,000 yds):62-34/186 -102
Field of view (degrees):3.52 -1.93
Field of view for eyeglass wearers (degrees):3.52 -1.93
Field of view, apparent (degrees):57- 71
Shortest focusing distance (m/ft):3.4/11.2
Diopter correction at ∞ (dpt):>5
Light transmission (%):88
Objective filter thread:M58 x 0,75
Dimensions L x W x H (mm/in) (ATC):258 x 65 x 142/10.2 x 2.6 x 5.6
Dimensions L x W x H (mm/in) (STC):285 x 65 x 66/11.2 x 2.6 x 2.6
Approx. weight (g/oz) (ATC):970/34.2
Approx. weight (g/oz) (STC):980/34.6
Tripod connection thread:3/8“ (incl. adapter to 1/4“)
Functional temperature: -25°C to 55°C (-13/ 131°F) ·
Storage temperature: -30°C to 70°C (-22/ 158°F) ·
Submersion tightness: 4 m (13 ft) (inert gas filling)
MPN:
48900 - Green
48901 - Brunt Orange
