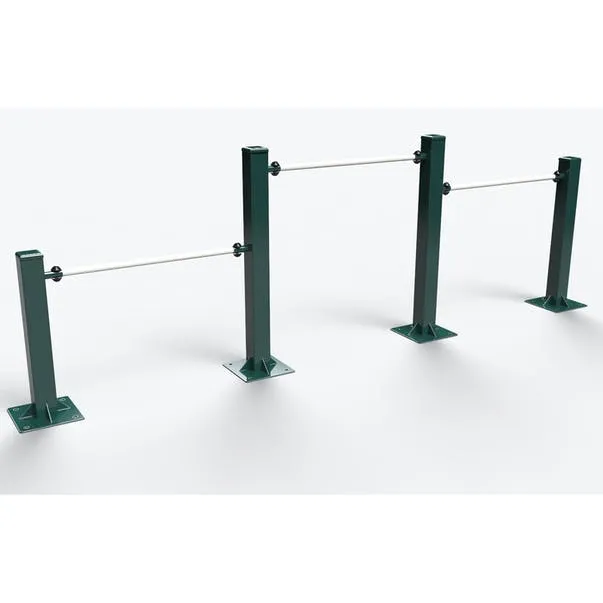

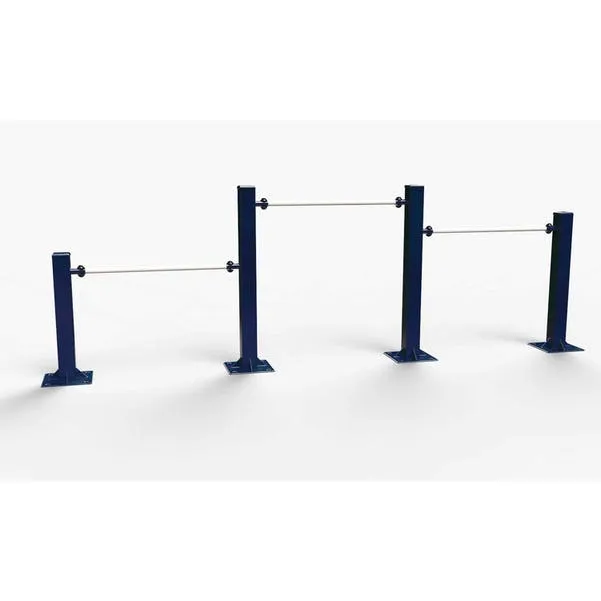

The Multi-Bars are a versatile and essential piece of equipment used to perform a variety of stretching exercises, assisted pull-ups and push-ups.

This equipment is designed for individuals weighing up to 330 lbs.

Dimensions: 177”L X 8”W X 88”H
Color: Green or Blue
Bar Height: 27.5", 35.5" & 43.25"
Weight: 110 lbs
Assembly: Not Required

Warranty:

Limited 10-year warranty on steel posts, welds, bars and other steel parts on all units that are fully welded, with non-moving parts.

Limited 5-year warranty on steel posts, welds, bars and other steel parts for all units with moving parts.

Product Specification:

TriActive USA’s MBAR assumes three cross bars (3, 4, and 5 feet off ground on center) and four upright posts utilizing a slip fit tube that’s welded inside the cross bars and drilling holes for 3/8” bolts to secure the cross bars in place.

MBAR assumes usage of American standard size tubing, namely:

3” x 3” square tubing x 11ga,
1-1/4” OD round tubing x 11ga,
1.5” Round Tube 11ga
¼” hot rolled flat bar.

The part will have seven parts in total – 4 uprights and 3 cross bars.

TriActive USA Fitness Equipment does not include any of the following:

exposed cables
hydraulics
plastic seating

Powder Coating Specification:

Powder coating thickness 6-8 mils. Coatings are tested for 1000 hours of salt spray resistance.
pre-treated
iron phosphate applied
zinc powder applied
functional powder applied
and final TGIC powder coat is applied to provide outstanding weathering capabilities.

General Assembly Instructions:

Assemble at locations where indicated with supplied hex bolts, washers, plastic security bases, and plastic security caps. It’s recommended to use a thread locking agent. 6 hex bolts, 12 washers, 12 plastic bases and caps, 12 nuts provided.
