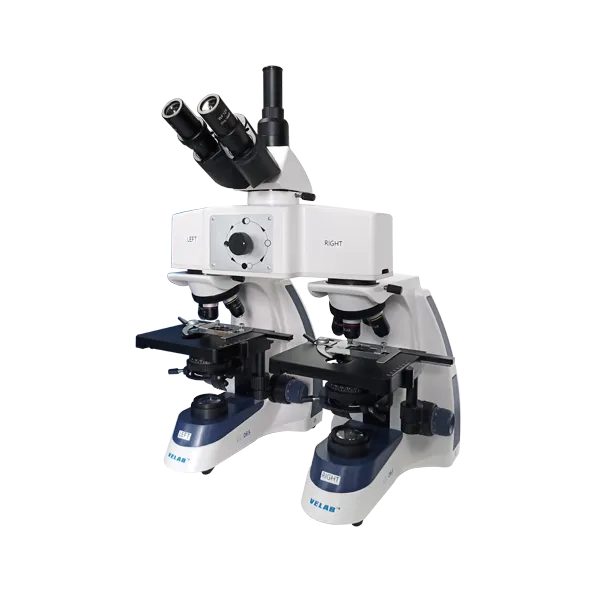

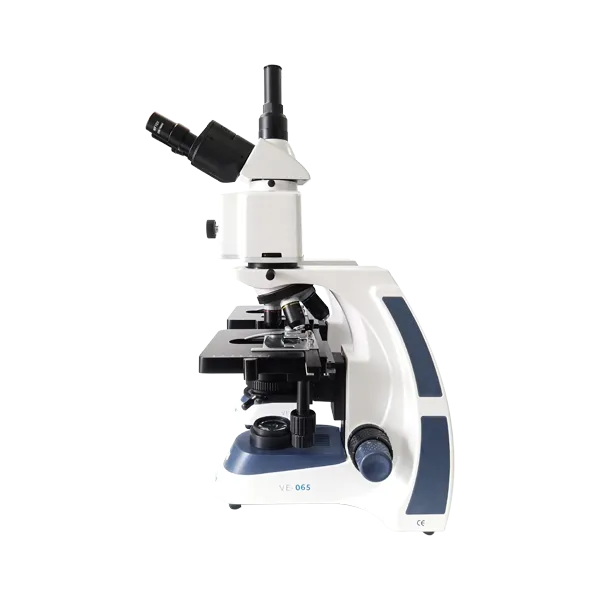

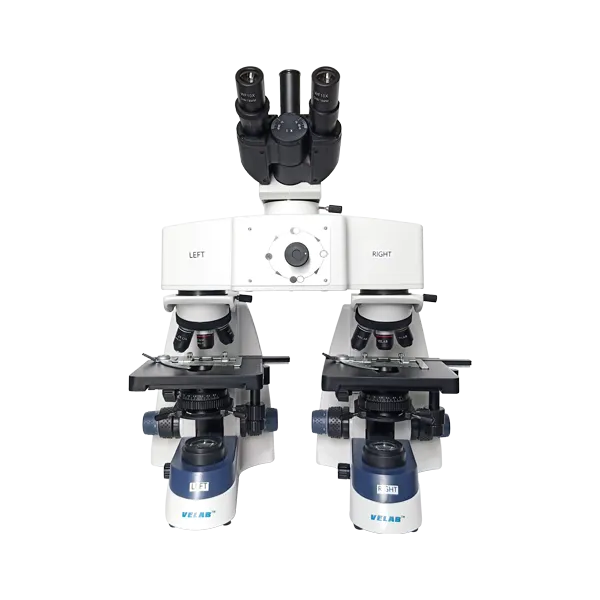

The VE-065 is a professional microscope designed for the simultaneous comparison of two samples. It has a double head mount adapted on two microscope bodies. Its third eyepiece allows the user to document observations using a digital device (not included).
Ideal for comparing samples such as fibers, hair, filaments, insects, pollen and spores. The VE-065 can also be converted into a ballistic comparison microscope.
Especifications
| Eyepieces | WF 10X / 18 mm. |
| Nosepieces | Quadruple. |
| Objectives | 4X, 10X, 40X (S) 100X (Oil) (S). |
| Optical System | Achromatic. |
| Stage | Double layer with coaxial movement X-Y 140 x 160 mm / 5.5” x 6.2”. |
| Condenser | Abbe, N.A 1.25. |
| Diaphragm | Iris type |
| Focus | Coarse and fine anti-slip control knob. |
| Ilumination | LED. |
| Dimensions | General: 455 x 570 x 280 mm/ 17.9” x 22.4” x 11.0”. Microscope: 200 x 290 x 280 mm/ 7.8” x 11.4” x 11.0”. Optical bridge: 330 x 103 x 90 mm / 12.9” x 4.0” x 3.5”. |
| Power supply | Three 1.2V AA rechargeable batteries (included). 110/240, 50/60 Hz AC Adapter. |
| Main Features | Diopter adjustment in an eyepiece. Trinocular head, Siedentopf type. Head inclined at 30° and rotatable 360 ° Interpupillary distance of 48 ~ 75 mm. Comparison optical bridge, built-in by an optical system of a lens, prims, and mirrors, which allows viewing two samples and overlap them in one field of view. Stable, robust, reinforced and easy to transport. Lighting with intensity adjustment Objectives with color rings. Stage with vernier, millimeter scale, caliper and stop with height adjustment. Head inclined at 30°, rotatable 360°, and coupled to comparison optical bridge. |
| Applications | Research |
| Accessories Included | AC/CD (2) Adapter Dust cover Immersion oil (2) Color filters blue, yellow and green (2 of every color) |
| Warranty | 10 years |
