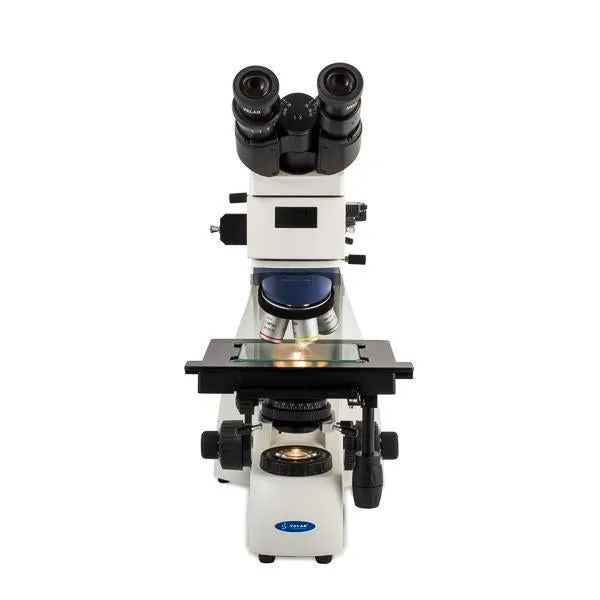

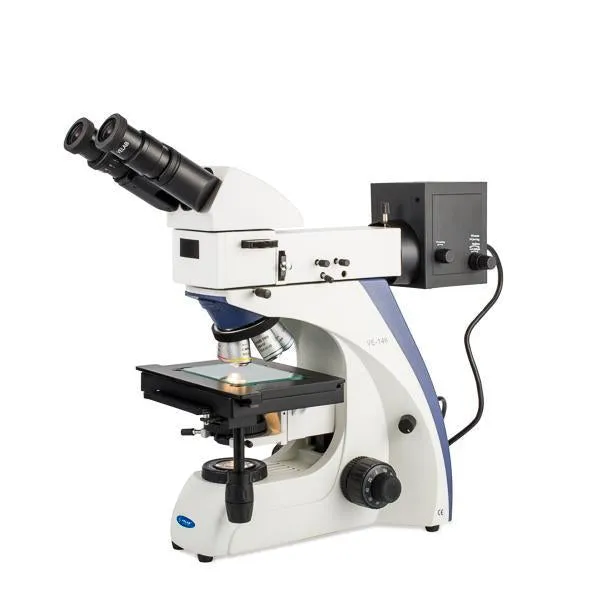

The VE-146 metallographic microscope is ideal for materials science, it includes transmitted and incident light with polarization.
Ideal for observing metals, crystals, powders and translucent materials.
Especifications
| Eyepieces | WF10X/22 mm |
| Nosepieces | Quintuple |
| Objectives | 5X, 10X, 20X, 50X, long working distance. Metallographic use. |
| Optical System | Infinity-Corrected Plan Achromatic. |
| Stage | Double layer with coaxial movement X-Y 190 x 150 mm / 7.4” x 5.9”. |
| Condenser | Abbe, N.A 1.25 with elevator |
| Diaphragm | Iris type. |
| Focus | Coarse and fine anti-slip control knob. |
| Ilumination | Kohler Halogen 12V/30W, y Epi-Kohler Fluorescence 12V/30W. |
| Dimensions | 220 x 488 x 560 mm/ 8.6” x 19.2” x 22”. |
| Power supply | 110/240V, 50/60 Hz AC adapter |
| Main Features | Diopter adjustment in one eyepiece. Binocular head type Siedentopf. Objectives with color rings. Stage with integrated clear glass surface. Stable, robust, reinforced and easy to transport. Incident and transmitted illumination, with diaphragm field in both. Head tilted 30 ° and rotatable 360 ° Interpupillary distance of 48 ~ 75 mm. |
| Applications | Education: Lower grade level |
| Accessories Included | Power cord Filter IBD-2, IF550 y ND25 Blue, green and yellow filter Micrometric eyepiece 10X/20mm DIV: 0.1 mm Stage micrometer. Dust cover |
| Warranty | 10 years |
