Item Description

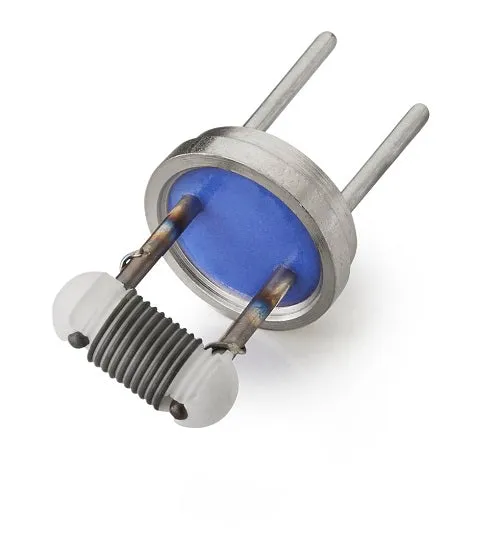

The IR-12K source is a thermal emitter with emissivity ~0.8. It is appropriate for use in lab or field instrumentation due to its long life and stable properties. The 11 Watt coiled resistance wire filament IR-12K operates at 975C.

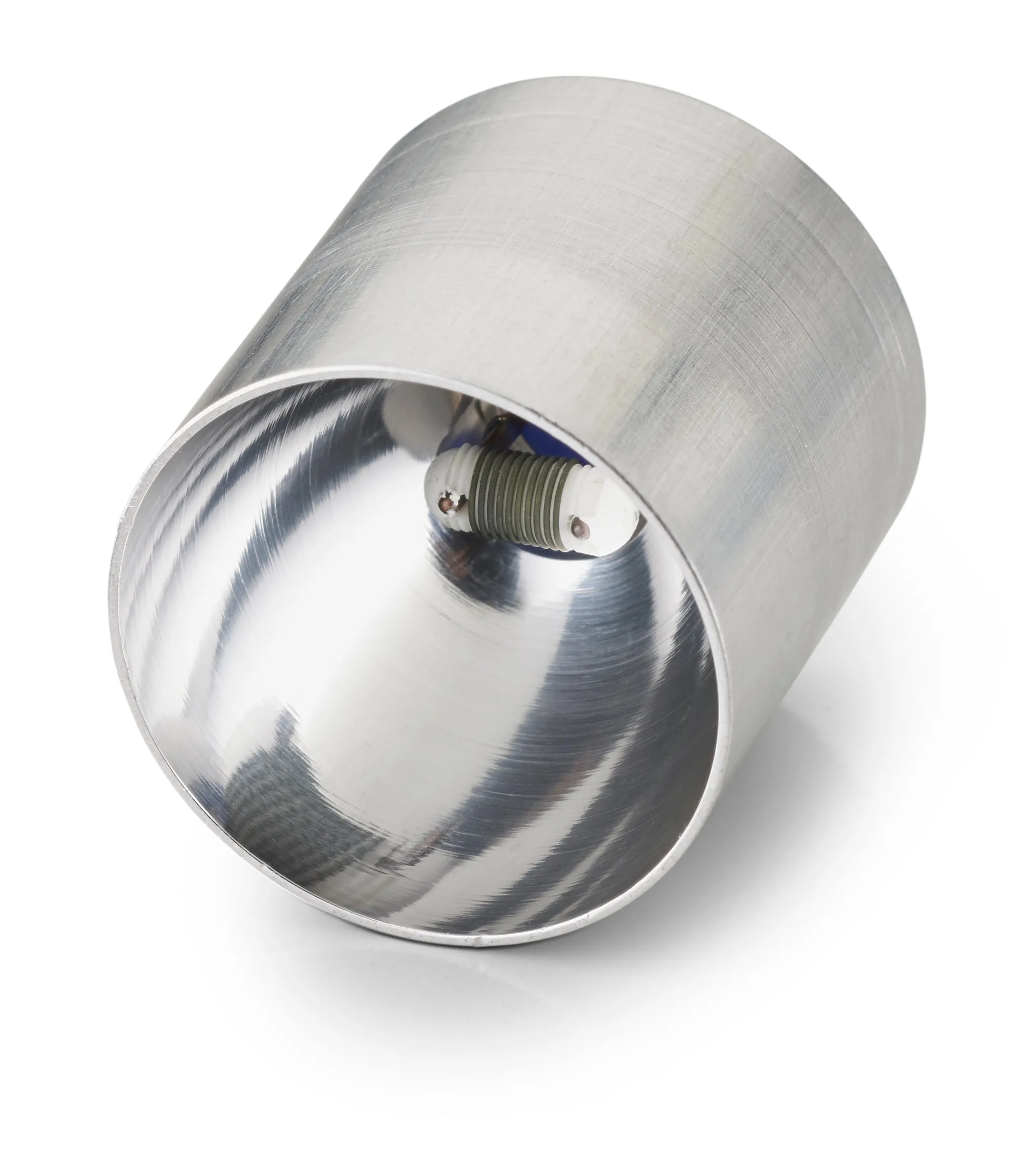

Optional aluminum reflectors are also available, parabolic for collimated output (MC234) and elliptical (MC-233) to focus the output (when ordering select IR-12K and optional reflector). See the PDF data sheet for details on the reflectors.
Also see the Universal Photon Source as an accessory to your emitter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Long service life | Recommended upper limit | |
| Temperature (C) | 975 | 1125 |
| Volts (V) | 6 | 7 |
| Current (A) | 1.8 | 2.2 |
| Power (W) | 11 | 15 |
